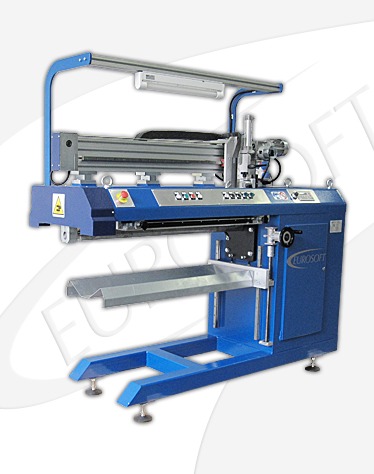

Bench Work with automatic locking linear Tig Welding
· Heavy electro welded steel structure.
· Blocking bench with double row of independent combs for automatic blockage, with pedal control.
· Copper bar in Cr-Zr with double cooling conduit and gas protection for internal
· Copper bar support in ferrous material.
· Precision motor slide for the translation of torch by means of drive belt in extension on sliding block.
· Welder with automatic torch conveyor carriage and electronic control – inverter system and potentiometer for speed regulation from 280 to 3000 mm./min.
· Automatic linear centring.
· Pneumatic closure chuck.
· “Siemens“ electronic control for: automatic cycle – carriage departure delay device – electronic high frequency protection panel.
· Welding speed 20 seconds per linear meter tested on AISI 316 stainless steel with a thickness of 0.5 mm.
· Carrier on guideline movement for support the tube.
· Welding machine from 250 Amp. with automatic torch of Mt 4, switchboard for torch and bar cooling.
· Thickness : from 0.5 mm to 2 mm.
· Materials : stainless steel – galvanised sheet metal ,copper.
· Diameters: from mm. 80 to mm. 800 mm.
· CE Marks and Declaration of Conformity
